twoWaySocket

Syntax

Defined in couplingProperties dictionary.

dataExchangeModel twoWaySocket;
twoWaySocketProps
{
    verbose          switch;
    bbOffset         scalar;
    timeOut          label;
    nTries           label;
    portFilePath     "../DEM";
    hyperthreading   switch;
    triggerDEMOutput switch;
};

• verbose = give verbose output (default: false)

• bbOffset = enlarge the CPU bounding box by this value in every direction. Will lead to partcles being communicated to several CFD processes. (default: 0)

• timeOut = wait time in seconds for start up of DEM solver and successful socket connection (default: 1)

• nTries = number of tries to connect to DEM solver socket server (default: 10)

• portFilePath = search path for portOffset files (default: “../DEM”)

• hyperthreading = If true then DEM and CFD calculate the same time step in a concurrent manner, i.e. the processes run at the same time. This setup requires two threads per core (use cfdemSysTest or lscpu command to check). In case only one thread per core is available you should use false for optimal performance. In this setup the processes are run in a conscutive manner, i.e. the CFD runs while the DEM is idle and vice-versa. Note: this overrides the CFDEM_SOCKET_HYPERTHREADING environment variable. (default: true).

• triggerDEMOutput = trigger writing of DEM result files on CFD output times (default: true)

Examples

dataExchangeModel twoWaySocket;
twoWaySocketProps
{
    verbose true;
    bbOffset 1e-3;
    timeOut 10;
    nTries  12;
    portFilePath "./";
    hyperthreading on;
}

Description

The data exchange model performs the data exchange between the DEM code and the CFD code. The twoWaySocket model is a model that can exchange trivial particle properties from DEM to CFD (e.g. position, radii) and from CFD to DEM (e.g. dragforce). Data is exchanged via a standardized socket interface by sequentially writing/reading data. Both codes have to run separately and are not linked. The before mentioned standardized socket interface can also be used to exchange data between the DEM code and a completely different CFD code (e.g. based on Lattice Boltzman Method).

Each CFD process calculates its own bounding-box from its mesh and adds an optional offset bbOffset to the boundary, enlarging the domain on each CPU . This is used in the DEM code to determine where to send the particle data. During start up the dataExchangeModel searches for portOffset_* files in the portFilePath (default is ../DEM). If not successful, the model waits timeOut seconds (default is 1 second) and it repeats the attempt to a total of nTries (default is 10) times.

If triggerDEMOutput true (the default) is set, the CFD will trigger the DEM side to write results whenever CFD results are written. This behavior will result in result files from both sides at matching times. This behavior requires the existence of a writeAsx model and overrides settings made with the write_output_timestep in an Aspherix input script.

Note

Triggering DEM output from the CFD requires that output to be configured on the DEM side, i.e. your input script should contain an output_settings command.

This model also exchanges global data with the DEM side, e.g.

• gravity as set on the DEM side using enable_gravity, see settingsGravity

• the DEM time step as set using simulation_timestep

• fluid viscosity and density as set on the CFD side

Communication setup with DEM

When setting up a coupled simulation the variables communicated from CFD to DEM and vice-versa must match by name and type (scalar, vector, etc.) in both directions. The communication is set automatically with the socket connection and tries to create all necessary variables on the DEM side to correspond to the setting on the CFD side. If this setup fails because variables are, for instance, not available or not created an error message listing the problematic properties is displayed. Which variables are transferred can be controlled on the DEM side using the enable_cfd_coupling command.

Hyperthreading switch

The hyperthreading switch defines how the scheduling of the CFD and DEM executables is handled. The default is on, which leads to a concurrent execution of the executables. Additional to this per-case setting, the CFDEM_SOCKET_HYPERTHREADING environment variable can be set to apply a default value. Add “export CFDEM_SOCKET_HYPERTHREADING=off” to your bashrc to set this system-wide.

Setting hyperthreading to off, the two executables will run in consecutive mode, meaning that the CFD and DEM calculations steps are run after on another on the same core.

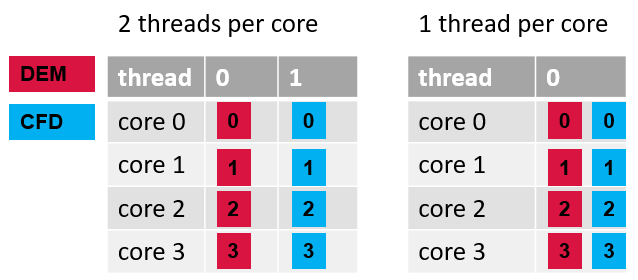

The benefit in concurrent execution is slightly better overall performance. Most CPUs support multiple threads per core, so this is the default and utilizes all the computational resources. However, on some CPUs only one thread is active and by default MPI will place and bind the processes of both executables on the same cores.

In this case both executables will hinder each other and performance will decrease. With hyperthreading off the executables wait each others turn and performance is optimal for this CPU type. To find your CPU type please use the cfdemSysTest command. The runtime of the Ergun case can serve as a reference here, it take about 34 seconds.

Restrictions

Note

timeOut must be given in seconds and does only accepts values as full seconds. This means that time out values smaller than one second are not allowed.

Note

This model requires the usage of an enable_cfd_coupling command on the DEM side.

Related commands

dataExchangeModel utility_cfdemTestSocket enable_cfd_coupling
